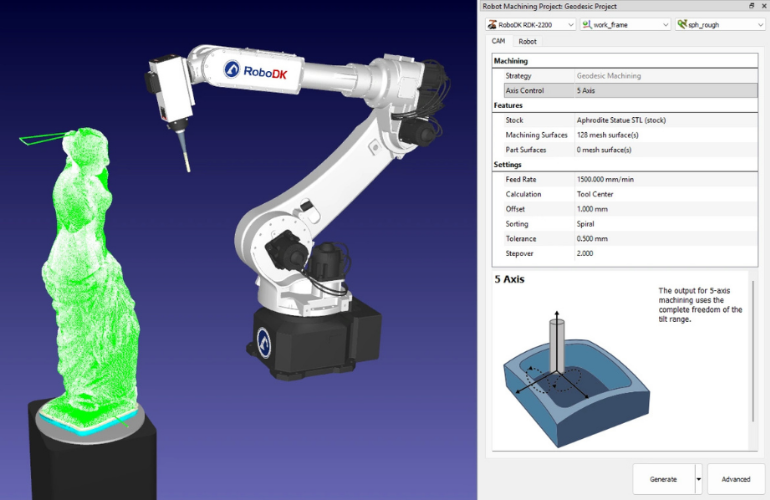

Simulation and offline programming capabilities lengthen past machining to incorporate duties like meeting, ending, and welding. This screenshot of RoboDK software program reveals a simulation designed to make sure quick and protected programming and deployment of a complicated meeting utility. Credit score: RoboDK
Robotic machining has grown in recognition in recent times, pushed by decrease robotic prices and elevated flexibility. In contrast with giant CNC machines, industrial robots are comparatively cheap, simple to maneuver round, and may be redeployed on a number of purposes.
CNC machines are the gold commonplace for accuracy-critical sectors corresponding to aerospace as a result of they’re so predictable. Nonetheless, for corporations enthusiastic about high-mix/low-volume batches and people working in sectors not topic to stringent aerospace necessities, CNC machines may be an over-engineered resolution.
For supplies like wooden, foam, plastics, aluminum, and more and more even arduous supplies, robots provide a considerably lower-cost various to over-engineered CNC options with out sacrificing vital high quality
Understanding robotic complexity
To date so good, however robots introduce distinctive complexities. For instance, whereas CNC machines function inside a clearly outlined, rectangular workspace, a robotic’s workspace is spherical and joint-dependent. Because of this even when a goal level lies throughout the robotic’s attain, it will not be accessible with the required orientation.
These constraints are manageable, however solely when they’re understood upfront, and that requires finish customers with appreciable data of robotic cell design and programming.
The programming bottleneck
The time it takes to manually program, check, and validate robotic machining purposes is a significant bottleneck in machining robotic deployments. That is the place offline programming (OLP) software program, particularly these with built-in CAM (computer-aided manufacturing) capabilities, could make an actual distinction.
For easy robotic purposes, corresponding to choose and place, handbook programming continues to be frequent. Machining purposes are very totally different. They usually require robots to observe paths with lots of of hundreds and even tens of millions of factors. Every level should be positioned accurately, oriented correctly, and executed with out collisions, axis limits, or singularities.
Manually defining such paths shouldn’t be humanly potential. Even modestly advanced shapes require a degree of precision and repeatability that human programmers can not obtain by hand.
Furthermore, handbook approaches are inclined to depend on trial-and-error and repeated tweaks on the robotic machining cell till the applying works accurately. This ties up tools, stretches deployment timelines into days and weeks, and will increase the chance of scrapped components and broken instruments.
Offline programming can produce real-world outcomes
Offline programming eliminates tedious handbook programming necessities and writes the code required to deliver your automated machining cell to life. This speeds deployments and redeployments and permits corporations to undertake automation rapidly.
As an alternative of programming on the robotic, OLP permits finish customers to work in a protected, digital setting that mirrors the true cell from the robotic itself to the tooling, fixtures, workpiece, and required course of parameters. The software program generates machining paths mechanically from CAD fashions utilizing CAM methods slightly than manually coded factors.
Utilizing offline programming instruments, machining purposes that will take days or even weeks to arrange manually may be programmed, simulated, and finalized in below an hour. OLP additionally makes it potential to attain advanced geometries which can be not possible to attain by hand. This function empowers finish customers to discover imaginative methods and purposes.
All of this occurs with out manufacturing downtime because the robotic cell and code are validated and programmed offline earlier than deployment. You need your robotic to spend its time machining, not ready for the newest set of trial-and-error directions from a human.
OLP software program like RoboDK CAM permits quick testing of various robotic paths, even on advanced components. This empowers customers to discover their inventive facet. Credit score: RoboDK
Simulating the singularity
Robots are liable to singularities, joint restrict violations, and surprising collisions, significantly in tight and complicated workspaces. Errors in machining purposes involving warmth or materials deposition can destroy high-value components and require prolonged restoration procedures.
Offline simulation software program permits engineers to detect and resolve potential points earlier than deployment. The software program mechanically evaluates reachability, joint movement, collision danger, and course of continuity throughout the complete toolpath. And issues that will in any other case seem mid-cycle are recognized and glued nearly.
Built-in CAM issues
Not all OLP instruments are equally suited to machining. Some have been initially developed for robotics and later prolonged to assist machining in restricted methods. Others started as CNC CAM techniques and added robotic assist later.
Built-in CAM issues as a result of robotic machining shouldn’t be merely CNC machining with a special arm. It requires coordinated management of instrument orientation, materials methods, and typically a number of synchronized axes corresponding to turntables or positioners.
CAM performance permits automated toolpath era, superior multi-axis methods, and material-removal simulation. This permits customers to see not simply how the robotic strikes, however how the half itself strikes throughout machining. With out this integration, customers are pressured into workarounds, rising the time spend, danger, and total complexity of the challenge.
OLP software program like RoboDK CAM mechanically generates code primarily based on CAD/CAM designs. This allows the machining of difficult geometrical shapes that will be virtually not possible to program manually. Credit score: RoboDK
Speedy deployments in high-mix environments
Offline programming software program could make an enormous distinction to high-mix/low-volume producers. When each machining job has totally different necessities, programming dominates complete cycle time. Lowering setup occasions from days and weeks to simply minutes permits corporations to attain sooner returns on their automation investments.
OLP instruments additionally allow experimentation. Engineers can check totally different robotic placements, tooling orientations, and machining methods digitally earlier than committing to a bodily setup. In lots of circumstances, OLP software program is bought earlier than any robotic {hardware}, permitting groups to guage feasibility and check large libraries of robots and peripherals towards real-world necessities.
The important necessities for offline programming
Not all offline programming software program is similar with regards to machining purposes. Right here’s a quick guidelines of an important options to search for:
- Built-in CAM capabilities
Automated toolpath era, materials methods, and multi-axis machining assist. - Correct robotic simulation
Detection of singularities, joint limits, attain points, and collisions earlier than execution. - Materials removing visualization
The flexibility to simulate how the half adjustments throughout machining, not simply robotic movement. - Ease of use
Intuitive software program reduces reliance on specialist programmers and shortens studying curves. - Assist for synchronized axes
Coordination of robots with turntables, positioners, or exterior axes for advanced setups.
Robotic machining represents the way forward for versatile manufacturing, however its success hinges on shifting away from the “trial and error” of the train pendant. By adopting the newest OLP software program with built-in CAM, producers can rework a weeks-long deployment right into a sub-one-hour process. The query is now not “Can a robotic machine a component?” however “How rapidly are you able to instruct it to take action?”
To see offline programming in motion, obtain a trial of RoboDK to simulate a machining challenge in minutes.
