What’s a Planetary Gear?

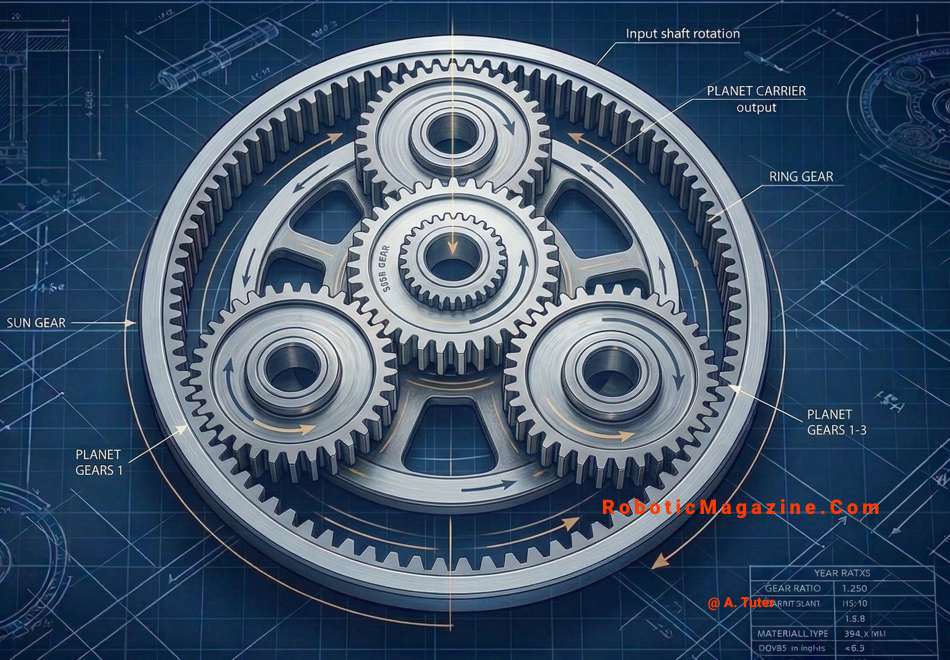

A planetary gearbox is a compact mechanical transmission used to cut back pace and improve torque in motor-driven methods. It consists of a central solar gear, a number of planet gears that rotate round it, and an outer ring gear, permitting load to be shared throughout a number of contact factors. This configuration supplies excessive torque capability, good effectivity, and compact dimension in comparison with standard gear preparations. In sensible purposes, a planetary gearbox is positioned between the motor and the pushed system to regulate efficiency: for instance, in a robotic arm joint, it permits a comparatively small servo motor to generate sufficient torque to maneuver the arm; in conveyor methods, it reduces excessive motor speeds to usable ranges whereas rising torque; and in CNC or precision movement methods, it improves management and positioning by decreasing pace and rising accessible drive.
Whereas it’s potential to extend torque, there are sensible limits as a result of friction. For instance a 3V motor can’t flip a tank’s tracks as a result of the required torque and energy are far past what such a small motor can ship. Whereas it’s potential to extend torque utilizing gear discount, there are sensible limits as a result of friction and the basic constraint of energy. A really excessive gear ratio can theoretically multiply torque to massive values, however it reduces pace to the purpose the place movement turns into impractically gradual—probably taking a particularly very long time to provide any seen motion. As well as, every gear stage introduces losses, and in multi-stage methods the cumulative friction can exceed the motor’s accessible output, inflicting it to stall or overheat earlier than transferring the load. Turning tank tracks additionally requires excessive beginning torque to beat floor resistance, weight, and observe deformation, which a small motor can’t present. In essence, gears enable a trade-off between pace and torque, however they don’t create energy; the power to carry out actual work finally depends upon the motor’s energy capability.

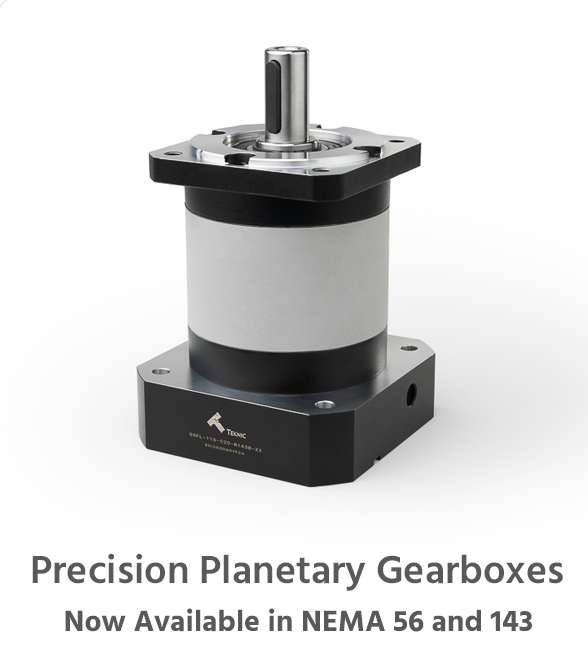

Beneath is an instance of an precise planetary gear from Teknic.
